Process vs Thread

Process vs Thread #

Program #

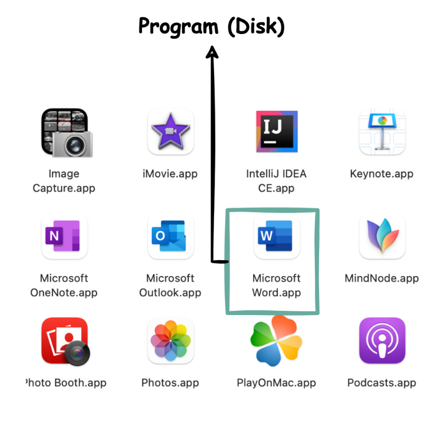

A Program is an executable file containing a set of instructions and passively stored on disk

program

Process #

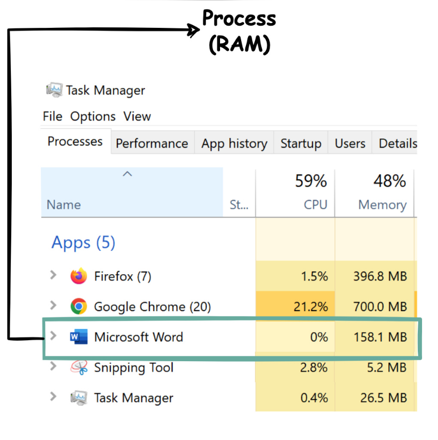

A Process means a program is in execution. When a program is loaded into the memory and becomes active, the program becomes a process or processes

process

Thread #

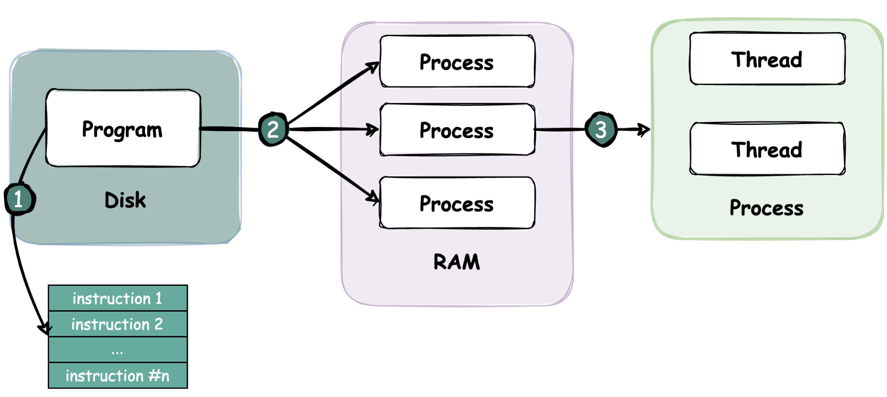

A Thread is the smallest unit of execution within a process

program_process_thread

Process vs Thread #

Process #

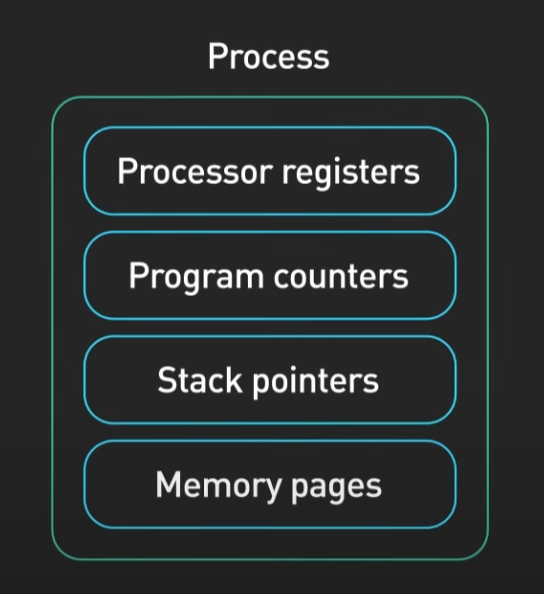

The process requires some essential resources such as registers, program counter, and stack

process_resouces

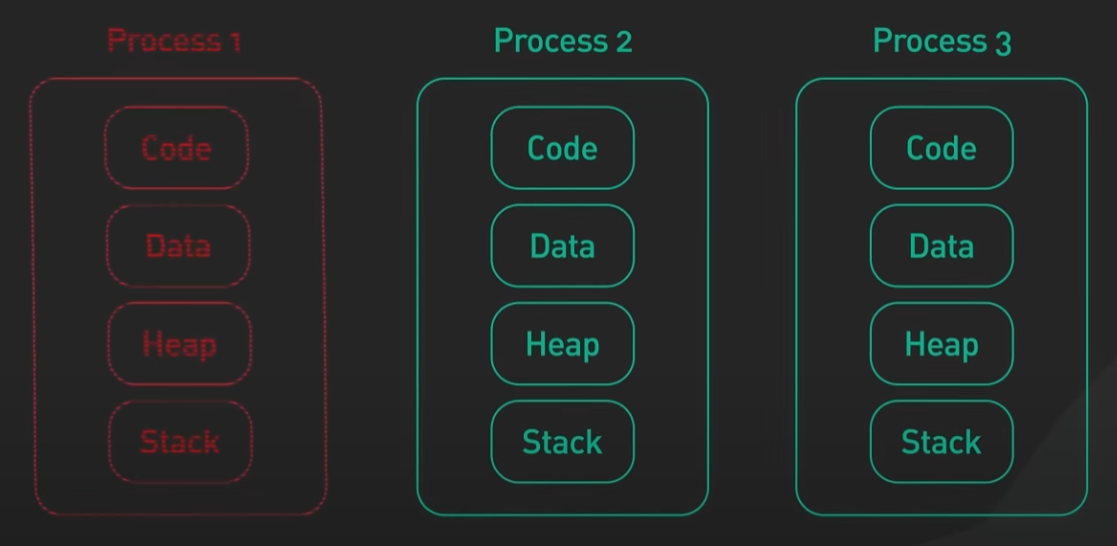

Each process has its own memory address space. One process can not corrupt the memory address space of another process. This means that when one process malfunctions, other processes keep running

malfunction_process

Thread #

A process has at least one thread. It’s called the main thread. It’s not uncommon for a process to have many threads

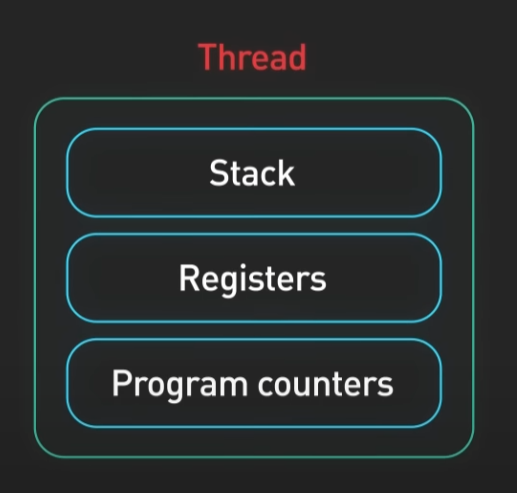

Each thread has its own stack. Earlier we mentioned registers, program counters and stack pointers as being part of a process. It’s more accurate to say that those things belong to a thread

thread_resources

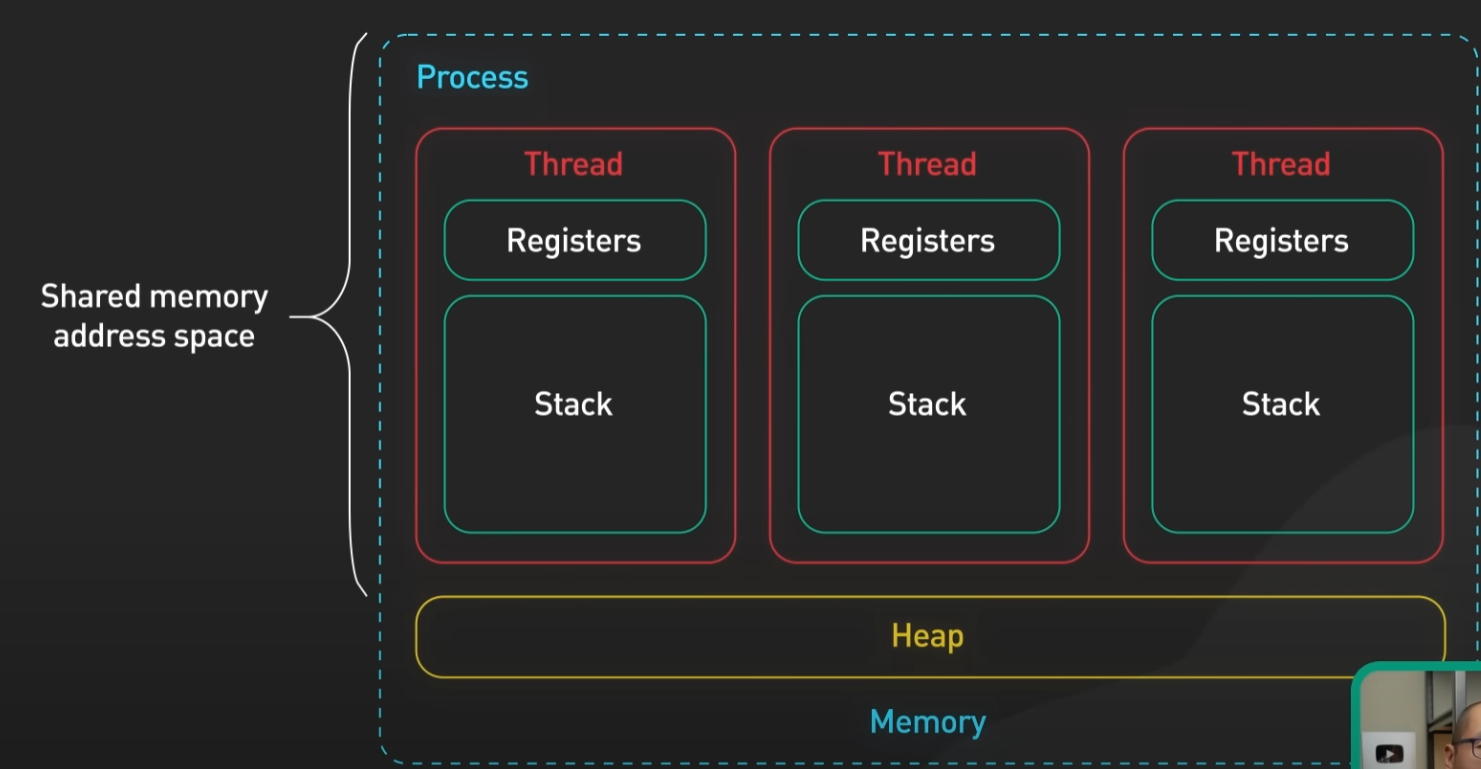

Threads within a process share a memory address space

It’s possible to communicate between threads using that shared memory space However, one misbehaving thread could bring down the entire process

shared_memory

Code demo #

When one process malfunctions, other processes keep running

Nodejs

const cluster = require("cluster");

if (cluster.isMaster) {
  // Master process logic
  console.log("Master process", process.pid, "is running");

  const normalSlave = cluster.fork();
  const misbehavingSlave = cluster.fork();

  misbehavingSlave.send({ isNormal: false });
  normalSlave.send({ isNormal: true });

  setInterval(() => {
    console.log("Master process", process.pid, "is doing some work.");
  }, 300);
} else {
  // Slave process logic
  console.log("Slave process", process.pid, "is running");

  process.on("message", ({ isNormal }) => {
    if (isNormal) {
      setInterval(() => {
        console.log("Slave process", process.pid, "is doing some work.");
      }, 300);
    } else {
      setTimeout(() => {
        throw new Error("Slave process " + process.pid + " is corrupted!!!");
      }, 2000);
    }
  });
}

One misbehaving thread could bring down the entire process

Nodejs

const { Worker } = require("worker_threads");

console.log("Process", process.pid, "starts");

// Create a misbehaving worker thread
const misbehavingWorker = new Worker(
  `
  const { threadId } = require('worker_threads');

  console.log('Thread', threadId, 'from process', process.pid, 'starts');

  // Intentionally cause an unhandled exception
  setTimeout(() => {
      throw new Error('Thread ' + threadId + ' is corrupted!!!');
  }, 2000);
  `,
  { eval: true }
);

// Create a normal worker thread
const normalWorker = new Worker(
  `
  const { threadId } = require('worker_threads');

  console.log('Thread', threadId, 'from process', process.pid, 'starts');

  // Simulate normal work
  setInterval(() => {
    console.log('Thread', threadId, 'is doing some work.');
  }, 300);
  `,
  { eval: true }
);

Multithreading and Multiprocessing #

Concurrency and Parallelism #

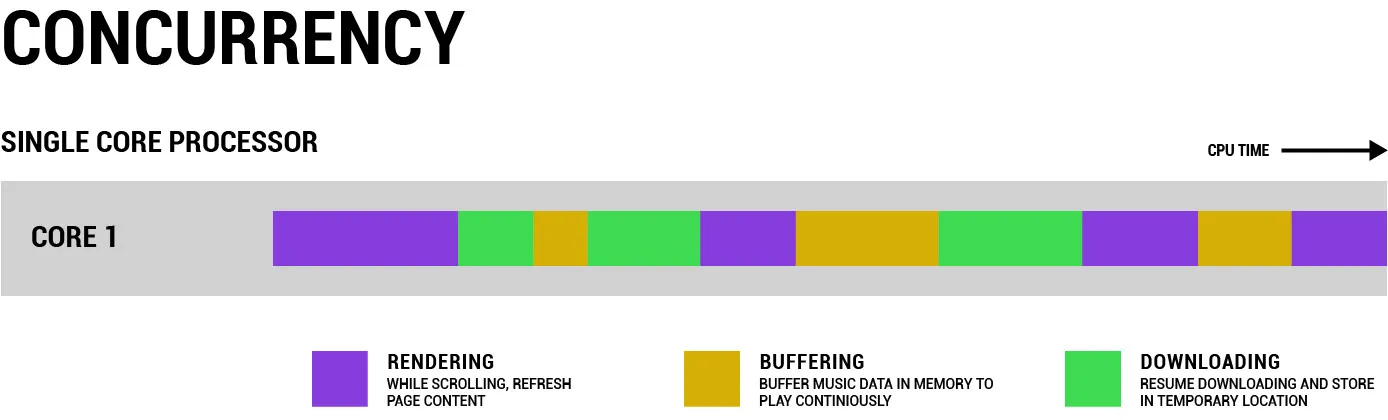

Concurrency allows multiple tasks to make progress by interleaving their execution, even if they are not executing simultaneously. It is focused on efficient task scheduling and resource utilization

concurrency

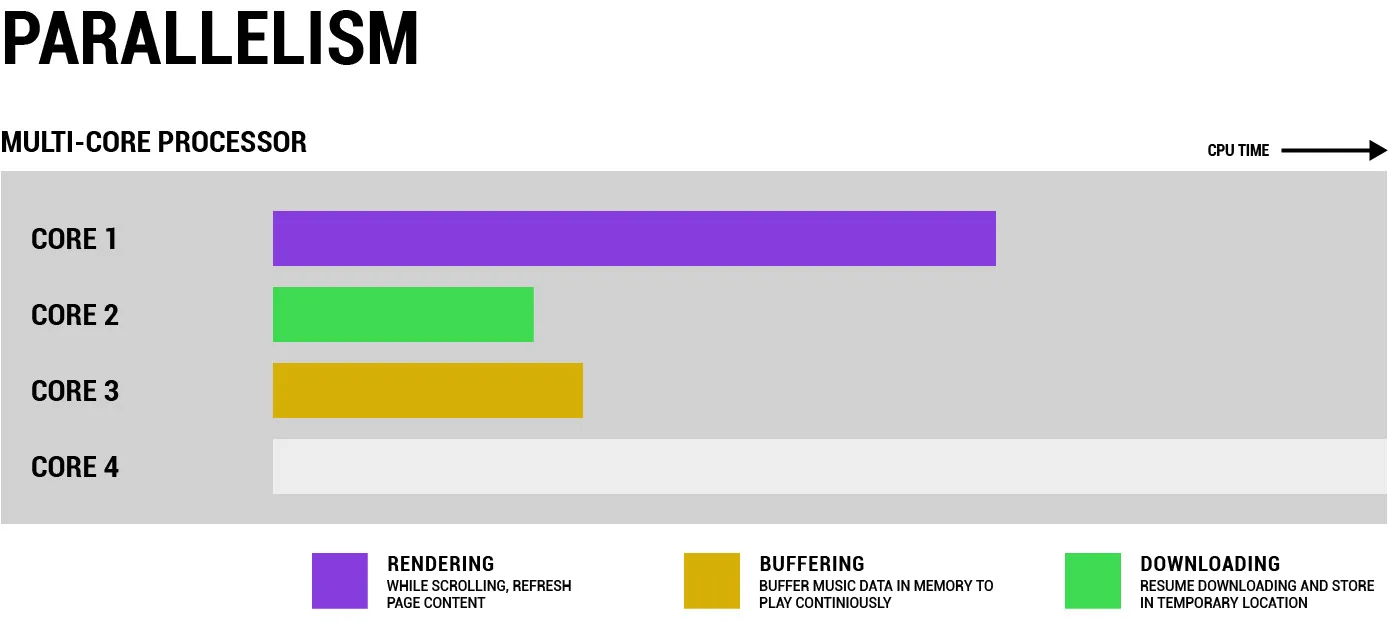

Parallelism involves executing multiple tasks simultaneously, typically on separate processing units or cores. It aims to achieve higher performance and faster task completion

parallelism

Multithreading #

Multithreading focuses on generating computing threads from a single process, whereas multiprocessing increases computing power by adding processors

multithreading

Multiprocessing #

Multiprocessing uses two or more processors to increase computing power, whereas multithreading uses a single process with multiple code segments to increase computing power

multiprocessing

Code demo #

Prepared files

Nodejs

k.js

const CPUS = require("os").cpus();
const NUM_CPU = CPUS.length;
const TOTAL_OBJS = 10000000;
const numWorkers = NUM_CPU;
const workload = TOTAL_OBJS / numWorkers;

module.exports = {
  CPUS,
  NUM_CPU,
  TOTAL_OBJS,
  numWorkers,
  workload,
};

_.js

const generateRandomName = () => {
  const names = [
    "Alice",
    "Bob",
    "Charlie",
    "David",
    "Eve",
    "Frank",
    "Grace",
    "Henry",
    "Ivy",
    "Jack",
  ];
  return names[Math.floor(Math.random() * names.length)];
};

const generateRandomAge = () => {
  return Math.floor(Math.random() * 100) + 1;
};

const generateObjects = (count) => {
  const objects = [];
  for (let i = 0; i < count; i++) {
    const object = {
      name: generateRandomName(),
      age: generateRandomAge(),
      createTime: new Date(),
    };
    objects.push(object);
  }
  return objects;
};

class Logger {
  constructor(isEnable) {
    this.isEnable = !!isEnable;
  }
  isDebug = false;
  logP1(...args) {
    if (this.isEnable) {
      console.log(...args);
    }
  }
  debug(...args) {
    if (this.isDebug && this.isEnable) {
      console.log(...args);
    }
  }
}

const ts = () => new Date().getTime();

class Monitor {
  startTime;
  endTime;

  start() {
    this.startTime = ts();
  }

  end() {
    this.endTime = ts();
  }

  getTotal() {
    return this.endTime - this.startTime;
  }
}

module.exports = {
  Logger,
  Monitor,
  generateObjects,
};

worker.js

const { generateObjects, Monitor, Logger } = require("../_");
const { workerData, parentPort, threadId } = require("worker_threads");

const monitor = new Monitor();
const logger = new Logger(true);

const { workload, isDebug } = workerData;
logger.isDebug = isDebug;

logger.debug("Worker", threadId, "of process", process.pid, "is running");

monitor.start();
const objects = generateObjects(workload);
monitor.end();

logger.debug(
  "Worker",
  threadId,
  "generated",
  objects.length,
  "in",
  monitor.getTotal(),
  "ms"
);

monitor.start();
parentPort.postMessage(objects);
monitor.end();
logger.debug("worker", threadId, "send data in", monitor.getTotal(), "ms");

Single thread vs multithreading vs multiprocessing

Nodejs

singleThread.js

const { TOTAL_OBJS } = require("../k");
const { generateObjects, Monitor } = require("../_");

const monitor = new Monitor();

monitor.start();
const obj = generateObjects(TOTAL_OBJS);
monitor.end();

console.log("Generate", obj.length, "in", monitor.getTotal(), "ms");

multithread.js

const { Worker } = require("worker_threads");

const { numWorkers, workload, TOTAL_OBJS } = require("../k");
const { Monitor, Logger } = require("../_");
let generatedObjects = [];
const monitor = new Monitor();
const logger = new Logger(true);

// set true to see more logs
logger.isDebug = true;

function runWorker(workerData) {
  return new Promise((resolve, reject) => {
    const worker = new Worker("./worker_threads/worker.js", { workerData });

    logger.debug("Worker", worker.threadId, "is running");

    worker.on("message", (message) => {
      generatedObjects = generatedObjects.concat(message);
    });

    worker.on("error", reject);
    worker.on("exit", (code) => {
      if (code === 0) {
        resolve();
      } else {
        reject(new Error(`Worker stopped with exit code ${code}`));
      }
    });
  });
}

async function generateObjectsWithWorkers() {
  const workers = [];

  monitor.start();
  for (let i = 0; i < numWorkers; i++) {
    const workerData = {
      workload,
      isDebug: logger.isDebug,
    };
    workers.push(runWorker(workerData));
  }

  await Promise.all(workers);
  monitor.end();
  logger.logP1(
    "All done!",
    numWorkers,
    "workers,",
    generatedObjects.length,
    "objects, in",
    monitor.getTotal(),
    "ms"
  );
}

generateObjectsWithWorkers();

multiprocess.js

const cluster = require("cluster");

const { workload, numWorkers } = require("../k");
const { Monitor, Logger, generateObjects } = require("../_");

const logger = new Logger(true);
const monitor = new Monitor();

// set true to see more logs
logger.isDebug = true;

if (cluster.isMaster) {
  monitor.start();
  logger.logP1("Master", process.pid, "is running");

  // Fork slaves
  for (let i = 0; i < numWorkers; i++) {
    cluster.fork();
  }

  // Collect data from slaves
  let generatedObjects = [];
  cluster.on("message", (slave, message) => {
    generatedObjects = generatedObjects.concat(message);
  });

  //  Wait for all workers to finish logic
  let slaveOff = 0;
  cluster.on("disconnect", () => {
    slaveOff++;

    if (slaveOff === numWorkers) {
      monitor.end();
      logger.logP1(
        "All done!",
        slaveOff,
        "slaves, in",
        monitor.getTotal(),
        "ms"
      );
      // Exit the application
      process.exit(0);
    }
  });
} else {
  // Slave process logic
  logger.debug("Slave", process.pid, "is running");

  let generatedObjects = [];

  // Generate objects in the worker process
  monitor.start();
  const objects = generateObjects(workload);
  monitor.end();
  generatedObjects = generatedObjects.concat(objects);

  logger.debug(
    "Generated",
    objects.length,
    "objects in slave",
    process.pid,
    "in",
    monitor.getTotal(),
    "ms"
  );

  // Send objects to the master process
  monitor.start();
  process.send(objects);
  monitor.end();
  logger.debug("slave", process.pid, "send data in", monitor.getTotal(), "ms");

  // Disconnect the slave process
  cluster.worker.disconnect();
}

Time-consuming when not communication together

Time-consuming when running multiple threads and multiple processes without communication together meaning each item runs separately and does not share data

Nodejs

// TODO: update guideline how it work and how it look (htop)

Time-consuming when communication together

Time-consuming when running multiple threads and multiple processes within communication together meaning each item runs separately but shares data with the main item

Nodejs

Context switching #

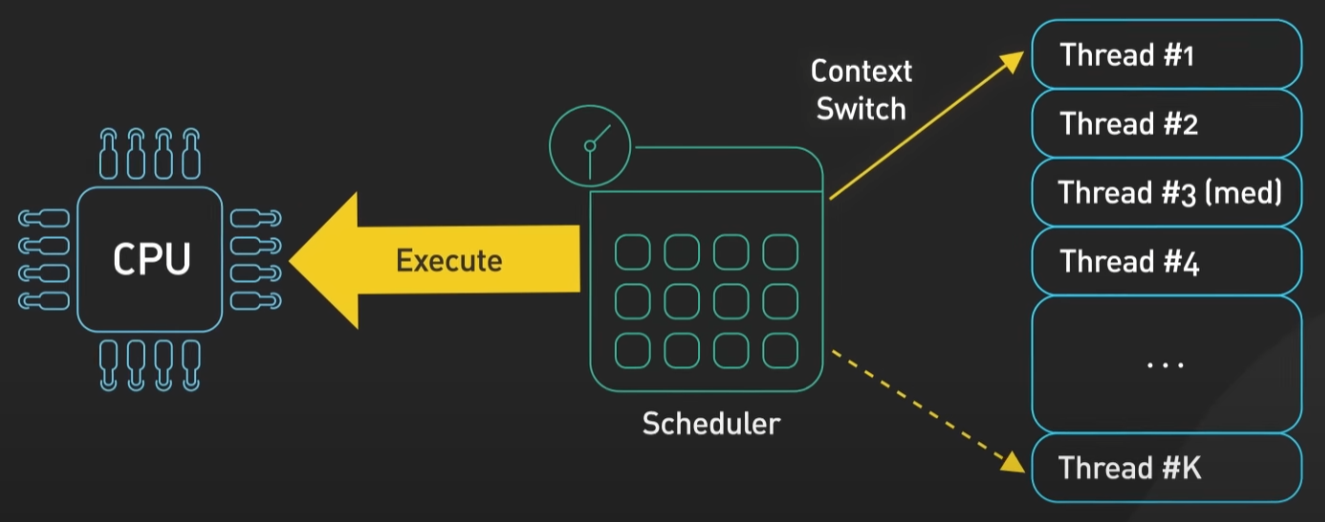

How does the OS run threads or processes on a CPU (processor) ?
=> This is handled by context switching

scheduler

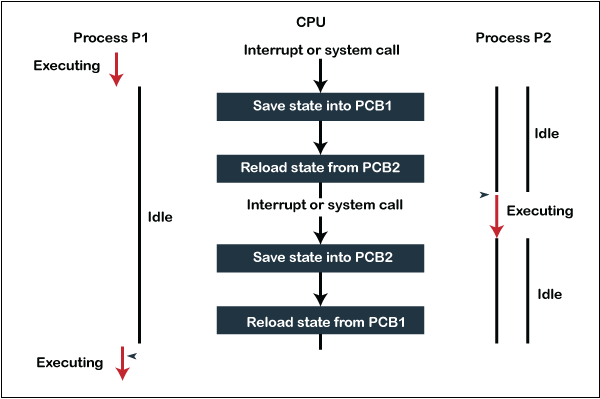

During a context switch, one process is switched out of the CPU (processor) so another process can run

process_executing

The OS stores the states of the current running process so the process can be restored and resume execution at a later point

It then restores the previously saved states of a different process and resumes execution for that process

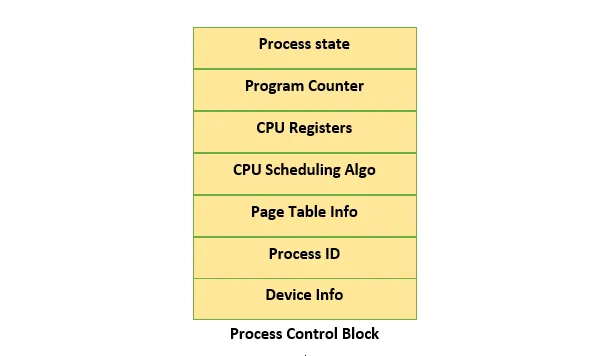

Context switching is expensive. It involves saving and loading registers, switching out memory pages, and updating various kernel data structures

process_control_block

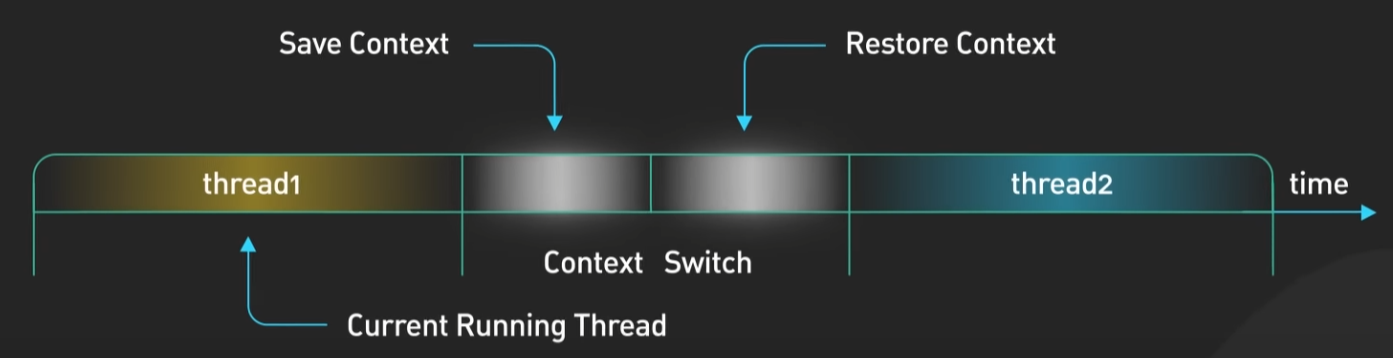

Switching execution between threads also requires context switching

context_switching

It’s generally faster to switch context between threads than between processes

There are fewer states to track, and more importantly, since threads share the same memory address space, there is no need to switch out virtual memory pages which is one of the most expensive operations during a context switch

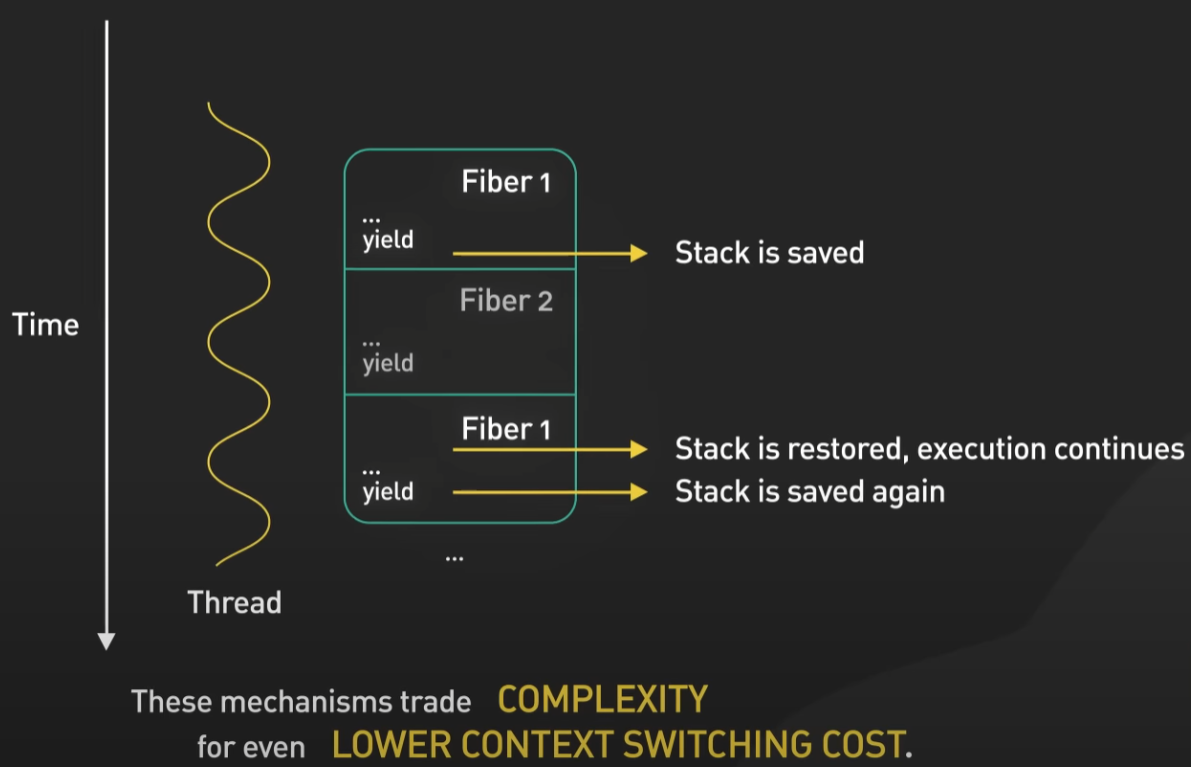

Context switching is so costly, there are other mechanisms to try to minimize it. Some examples are fibers and coroutines

These mechanisms trade complexity for even lower context-switching costs

fiber_yield

In general, they are cooperatively scheduled, that is, they must yield control for others to run

In other words, the application itself handles task scheduling

It’s the responsibility of the application to make sure a long-running task is broken up by yielding periodically

Conclusion #

Program, process, and thread:

  • The program contains a set of instructions
  • The program is loaded into memory. It becomes one or more running processes. When a process starts, it is assigned memory and resources
  • The thread is the smallest unit of execution within a process. A process can have one or more threads

If we can ideally run each thread on each idle core, we can actually run parallelism all jobs we want with the shortest time consuming

The cost when sharing data between threads and processes is also expensive, processes are more expensive than threads because threads inside the process use together shared memory address space

Context-switching will appear when the scheduler of OS assigns one logical processor more than one thread or process that needs to run. Context-switching is expensive

Appendix #

Processor definition #

There are 2 definitions of the term Processor that can lead you to confusion when researching

Let’s devine it into 2 names:

  • Physical processor: means processor definition in the hardware world
  • Logical processor: means processor definition in the software world

Physical processor #

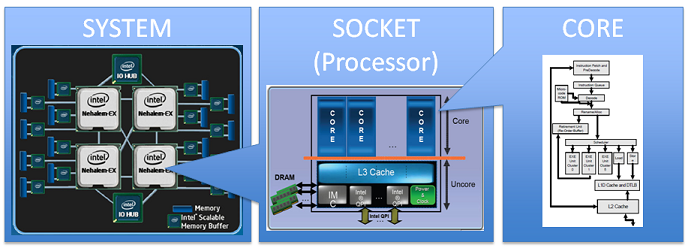

A processor in this context means the entire CPU chip as the Intel define

This image is the complexity of a modern multi-processor, multi-core system physical_processors

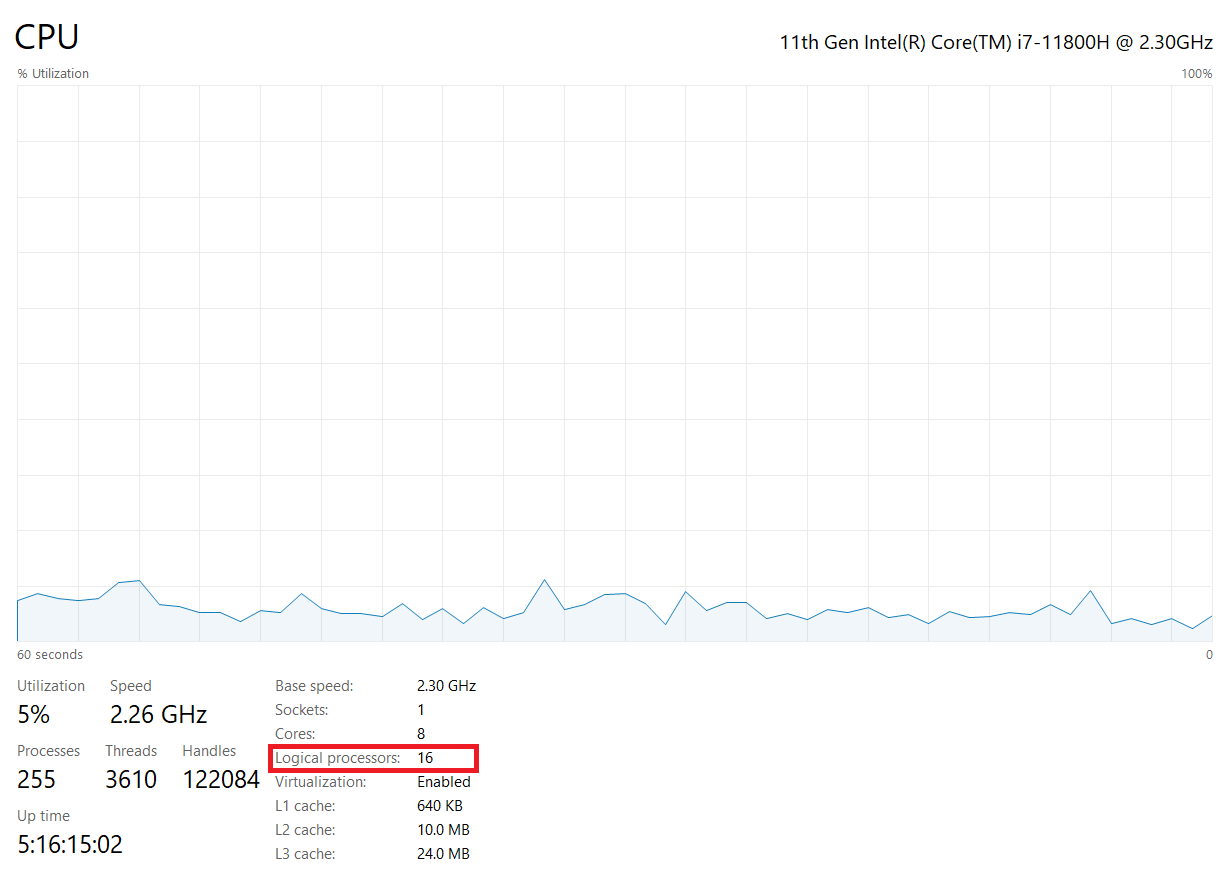

Logical processor #

logical_processors

A processor in this context means a virtual core:

  • CPU has 8 cores
  • CPU has hyperthreading and it is enabled so each core split into 2 virtual cores

Virtual memory #

A computer can address more memory than the amount physically installed on the system. This extra memory is actually called virtual memory and it is a section of a hard disk that’s set up to emulate the computer’s RAM

virtual_memory

Hyper-threading #

Intel® Hyper-Threading Technology is a hardware innovation that allows more than one thread to run on each core. More threads means more work can be done in parallel

How does Hyper-Threading work? When Intel® Hyper-Threading Technology is active, the CPU exposes two execution contexts per physical core. This means that one physical core now works like two “logical cores” that can handle different software threads
