RabbitMQ

RabbitMQ #

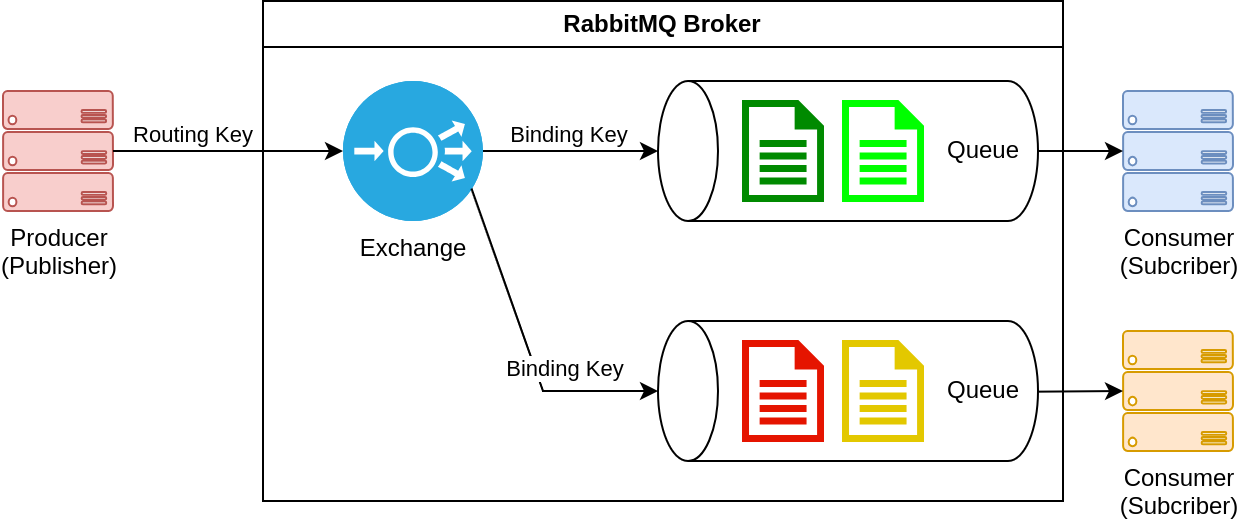

rabbitmq

  • Producer sends and monitors if the message reaches the intended consumer
  • Messages are deleted once consumed
  • Designed for complex message routing
  • Support message priorities

Exchange types #

  • Direct Exchange
  • Topic Exchange
  • Fanout Exchange
  • Headers Exchange
  • Dead Letter Exchange

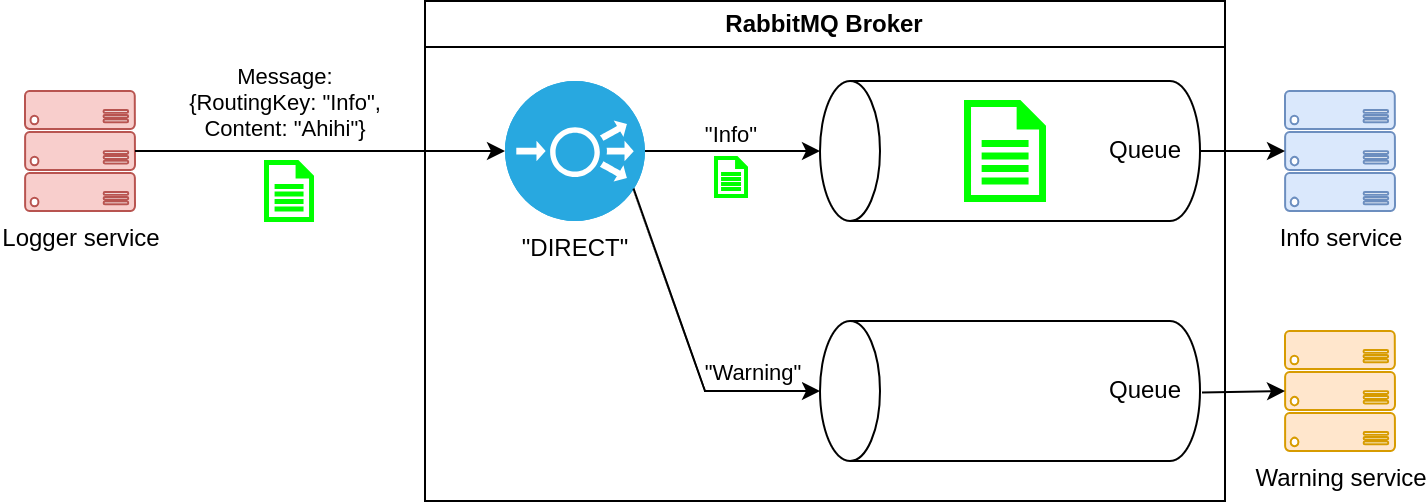

Direct Exchange #

  • A message goes to the queue(s) with the binding key that exactly matches the routing key of the message

direct

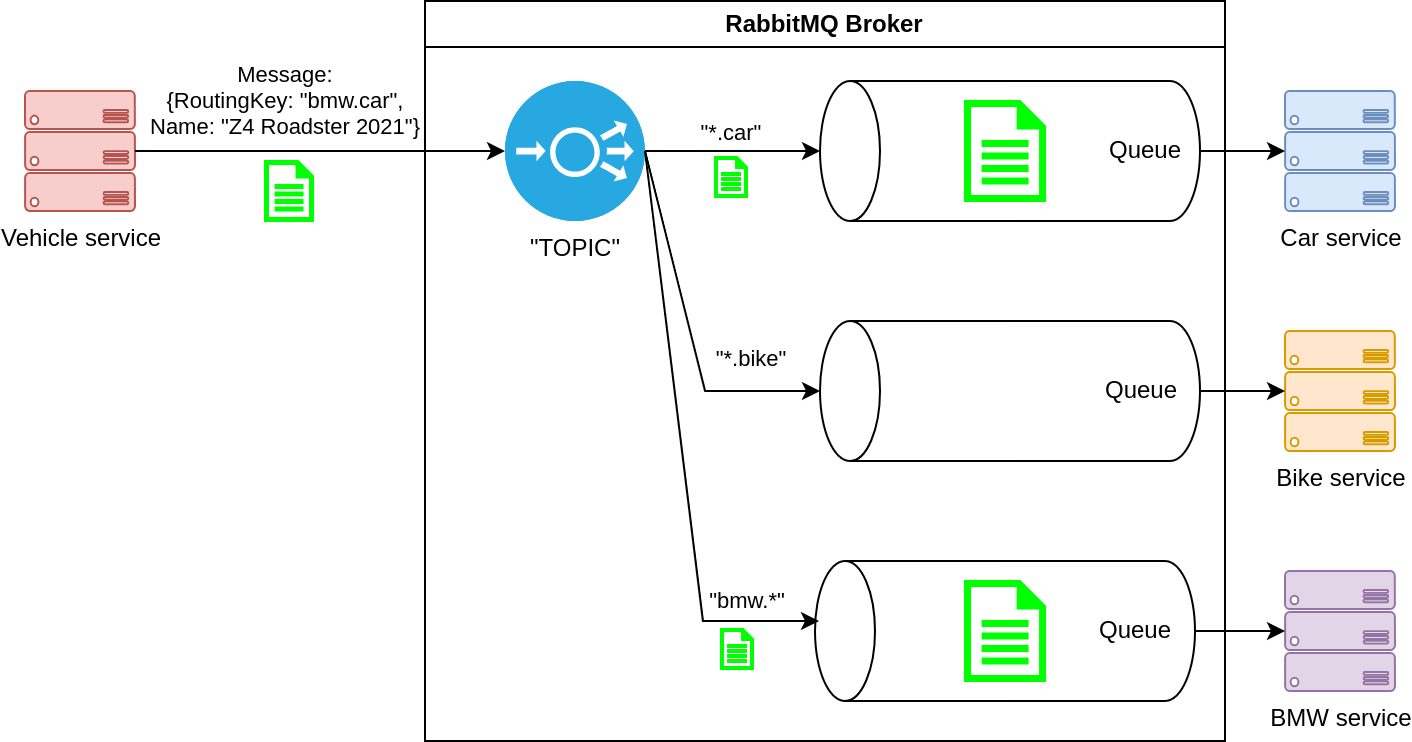

Topic Exchange #

  • Route messages to queues based on wildcard matches between the routing key and the binding pattern

topic

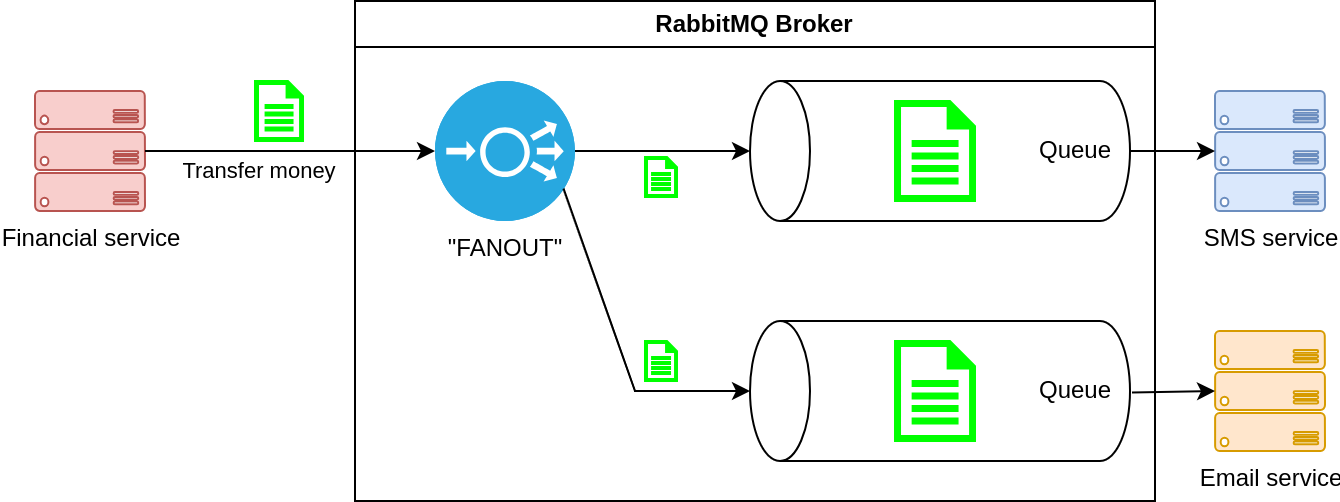

Fanout Exchange #

  • Copy and route a message to all queues

fanout

Headers Exchange #

  • Similar to topic exchanges
  • Route messages based on header values instead of routing keys

Dead Letter Exchange #

  • Capture messages that are not deliverable

Demo #

direct_demo

Setup RabbitMQ Broker #

  1. Pull the official RabbitMQ image:
    sudo docker pull rabbitmq:4.0.5-management
  2. Start a RabbitMQ:
    sudo docker run --name rabbitmq -p 5672:5672 -p 15672:15672 rabbitmq:4.0.5-management
    • --name assigns a name to the container
    • -p maps the ports from the container to your host machine
      • 5672 is for RabbitMQ server
      • 15672 is for management UI
  3. Access the RabbitMQ Management Console:
    • Open a web browser and navigate to http://localhost:15672/
    • Log in with the default username guest and password guest

Setup services #

  • AMQP is the data transfer protocol for communication with RabbitMQ
Prepare
// config.js
module.exports = {
  rabbitMQ: {
    url: "amqp://localhost",
    exchangeName: "logExchange",
    exchangeType: "direct",
  },
};

You can run this code block bellow with REST Client VScode extension

### post.http

@url=http://localhost:3000

### Info log
POST {{url}}/sendLog
Content-Type: application/json

{
    "logType": "Info",
    "message": "Everything works OK"
}

### Warning log
POST {{url}}/sendLog
Content-Type: application/json

{
    "logType": "Warning",
    "message": "Chrome is moving towards a new experience that allows users to choose to browse without third-party cookies"
}

### Error log
POST {{url}}/sendLog
Content-Type: application/json

{
    "logType": "Error",
    "message": "Unchecked runtime.lastError: The message port closed before a response was received"
}

Logger service
// loggerService.js
const amqp = require("amqplib");
const config = require("./config");

class Producer {
  channel;

  async createChannel() {
    const rabbitmqUrl = config.rabbitMQ.url;
    const connection = await amqp.connect(rabbitmqUrl);
    this.channel = await connection.createChannel();
  }

  async publishMessage(routingKey, message) {
    if (!this.channel) {
      await this.createChannel();
    }

    const exchangeName = config.rabbitMQ.exchangeName;
    const exchangeType = config.rabbitMQ.exchangeType;
    await this.channel.assertExchange(exchangeName, exchangeType);

    const logDetails = {
      logType: routingKey,
      message: message,
      dateTime: new Date(),
    };
    await this.channel.publish(
      exchangeName,
      routingKey,
      Buffer.from(JSON.stringify(logDetails))
    );

    console.log(
      `The new ${routingKey} log is sent to exchange ${exchangeName}`
    );
  }
}

const express = require("express");
const app = express();
const producer = new Producer();

app.use(express.json());

app.post("/sendLog", async (req, res) => {
  await producer.publishMessage(req.body.logType, req.body.message);
  res.send();
});

app.listen(3000, () => {
  console.log("Server started...");
});

Info service
// loggerService.js
const amqp = require("amqplib");
const config = require("./config");

async function consumeMessages() {
  const rabbitmqUrl = config.rabbitMQ.url;
  const connection = await amqp.connect(rabbitmqUrl);
  const channel = await connection.createChannel();

  const exchangeName = config.rabbitMQ.exchangeName;
  const exchangeType = config.rabbitMQ.exchangeType;
  await channel.assertExchange(exchangeName, exchangeType);

  const q = await channel.assertQueue("InfoQueue");

  await channel.bindQueue(q.queue, exchangeName, "Info");

  channel.consume(q.queue, (msg) => {
    const data = JSON.parse(msg.content);
    console.log(data);
    channel.ack(msg);
  });
}

consumeMessages();

Warning service
// warningService.js
const amqp = require("amqplib");
const config = require("./config");

async function consumeMessages() {
  const connection = await amqp.connect(config.rabbitMQ.url);
  const channel = await connection.createChannel();

  const exchangeName = config.rabbitMQ.exchangeName;
  const exchangeType = config.rabbitMQ.exchangeType;
  await channel.assertExchange(exchangeName, exchangeType);

  const q = await channel.assertQueue("WarningQueue");

  await channel.bindQueue(q.queue, exchangeName, "Warning");
  await channel.bindQueue(q.queue, exchangeName, "Error");

  channel.consume(q.queue, (msg) => {
    const data = JSON.parse(msg.content);
    console.log(data);
    channel.ack(msg);
  });
}

consumeMessages();
  1. Create a folder to hold all services in one place, such as RabbitMQ_Demo
  2. Initialize Node.js with: npm init -y
  3. Install necessary libraries:
    • amqplib: npm i amqplib
    • express: npm i express
  4. Prepare the necessary files: config.js, post.http, loggerService.js, infoService.js, and warningService.js
  5. Start the services:
    • Logger service: node loggerService.js
    • Info service: node infoService.js
    • Warning service: node warningService.js

Scenario #

  • Send info, warning, or error messages to the Logger service
    • Expect: They are routed to the corresponding consumer services
  • Try sending some messages with a logType that does not exist in any services
    • Expect: The logger service announces that the message was sent to the Exchange, but none of the consumer services receive the message
  • Try commenting out the code line in the Consumer service’s code block: channel.ack(msg);
    • Expect: Consumer services receive messages normally, but when we start them again, they will receive all unacknowledged messages again
